TriOneStore

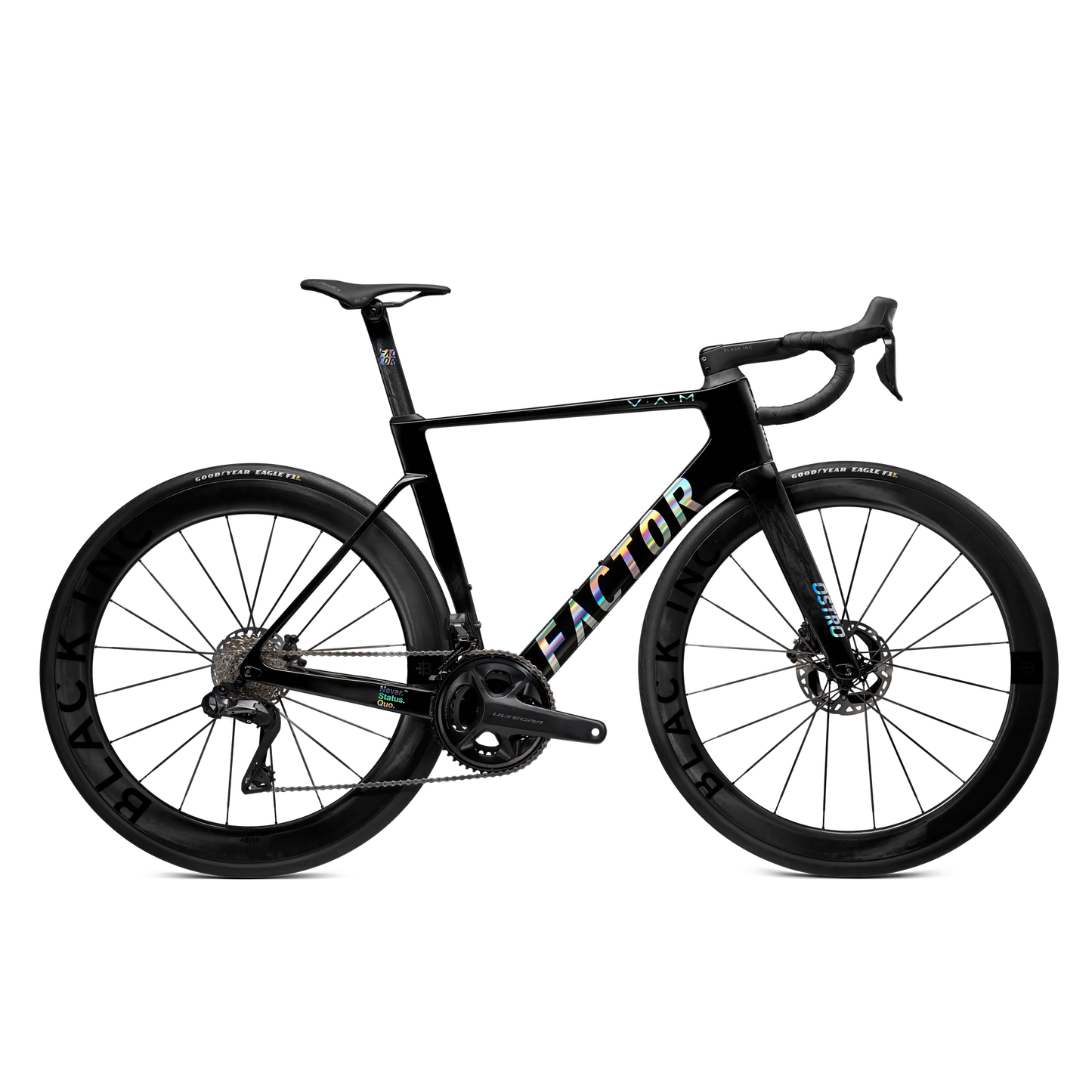

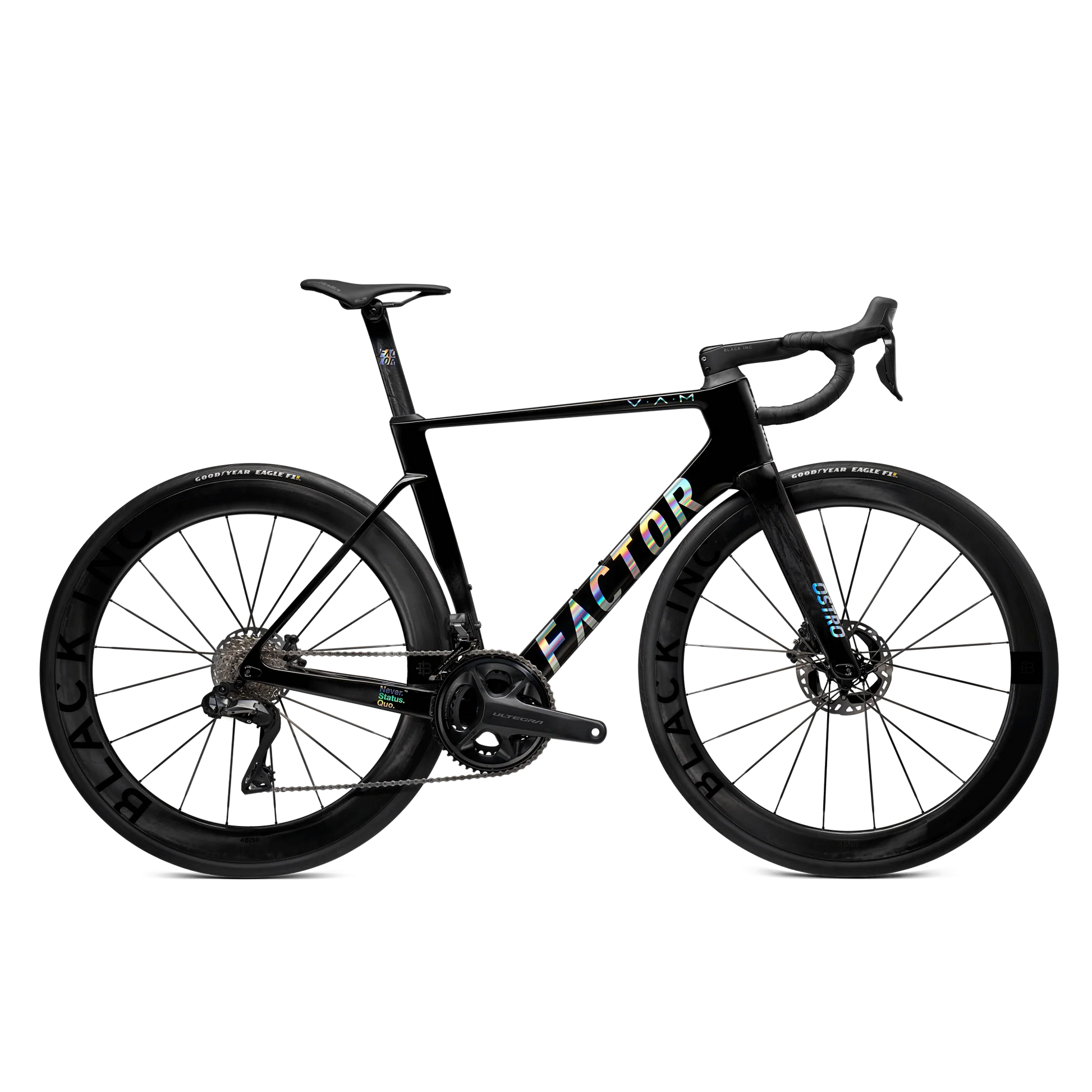

FACTOR - OSTRO VAM - ULTEGRA - GLOSS CHROME

FACTOR - OSTRO VAM - ULTEGRA - GLOSS CHROME

Precio habitual €10.999,00 EUR
Precio habitual €11.399,00 EUR Precio de oferta €10.999,00 EUR
Oferta Agotado
Impuestos incluidos.
TALLA
FRAME TeXtreme®, Toray®, Nippon Graphite® Pitch-Based Fiber
FORK OSTRO Wide Stance Fork
SEATPOST 0 and 20mm setback available
BARSTEM Black Inc Integrated Aero Barstem Reach 80mm, drop 120mm. Multiple stem lengths and bar widths available.
HEADSET CeramicSpeed SLT 1-1/8″ and 1-3/8″ bearings
HEAD TUBE DIAMETER 1-1/8″ upper and 1-3/8″ lower
SADDLE RAIL CLAMPS 7x7 and 7x9
BOTTOM BRACKET CeramicSpeed T47A Aluminium cups / CeramicSpeed bearings available for DUB, 24mm, or Ultra-Torque
CABLE ROUTING Internal
COMPATIBLE COMPONENTS Electronic
BRAKE TYPE Disc
MAX ROTOR SIZE 160mm front & rear
MAX CHAINRING 54-tooth
FRONT AXLE 12 x 100mm thru-axle
REAR AXLE 12 x 142mm thru-axle
WHEELSET Black Inc 48|58
WHEEL SIZE 700c
MAX TIRE CLEARANCE 32mm Measured
WEIGHT 900g
INCLUDED ACCESSORIES Black Inc Aero Integrated Bottle Cages
MANUFACTURER WARRANTY Limited Lifetime Warranty

GROUPSET SPECS

GROUPSET Shimano Ultegra Di2 R8170 Series
SPEED 2x12-speed
CRANK 52/36T
CASSETTE 11-30T
ROTORS 160/140mm

GEOMETRY

Geometry diagram of the OSTRO VAM v2
SIZE 45 49 52 54 56 58 61
A STACK 502 503 523 542 565 587 611
B REACH 360 370 376 384 392 401 409
C HEAD TUBE ANGLE 71.1° 71.1° 72.5° 72.5° 73.3° 73.3° 73.3°
D BB DROP 72 72 72 70 70 70 70
E TRAIL 58 58 58 58 58.6 58.6 58.6
F FORK RAKE/OFFSET 57 53 48 48 43 43 43
G CHAINSTAY LENGTH 405 405 405 405 405 408 410
H WHEELBASE 970 969 971 985 987 1006 1022
I BIKE STANDOVER HEIGHT 726 737 762 781 804 817 840
J SEAT TUBE LENGTH 432 454 483 502 524 531 554
K SEAT TUBE ANGLE 75.5° 74.5° 74° 74° 73.5° 73.5° 73.5°
